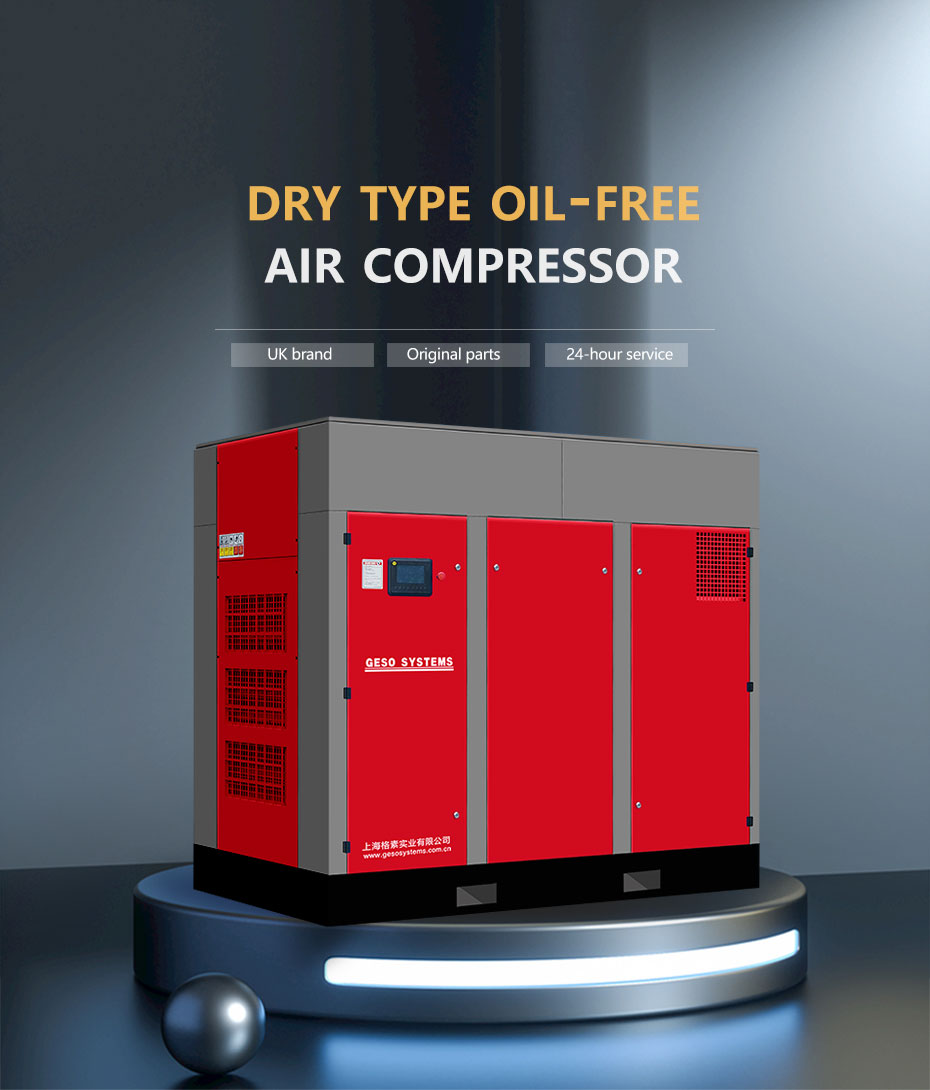

Geso UK brand Dry oilless oil-free air compressor
Geso dry oil-free variable frequency air compressor is well-designed and manufactured, using a two-stage compression host that is oil-free and water-free, making compressed air more environmentally friendly, stable, and energy-saving.

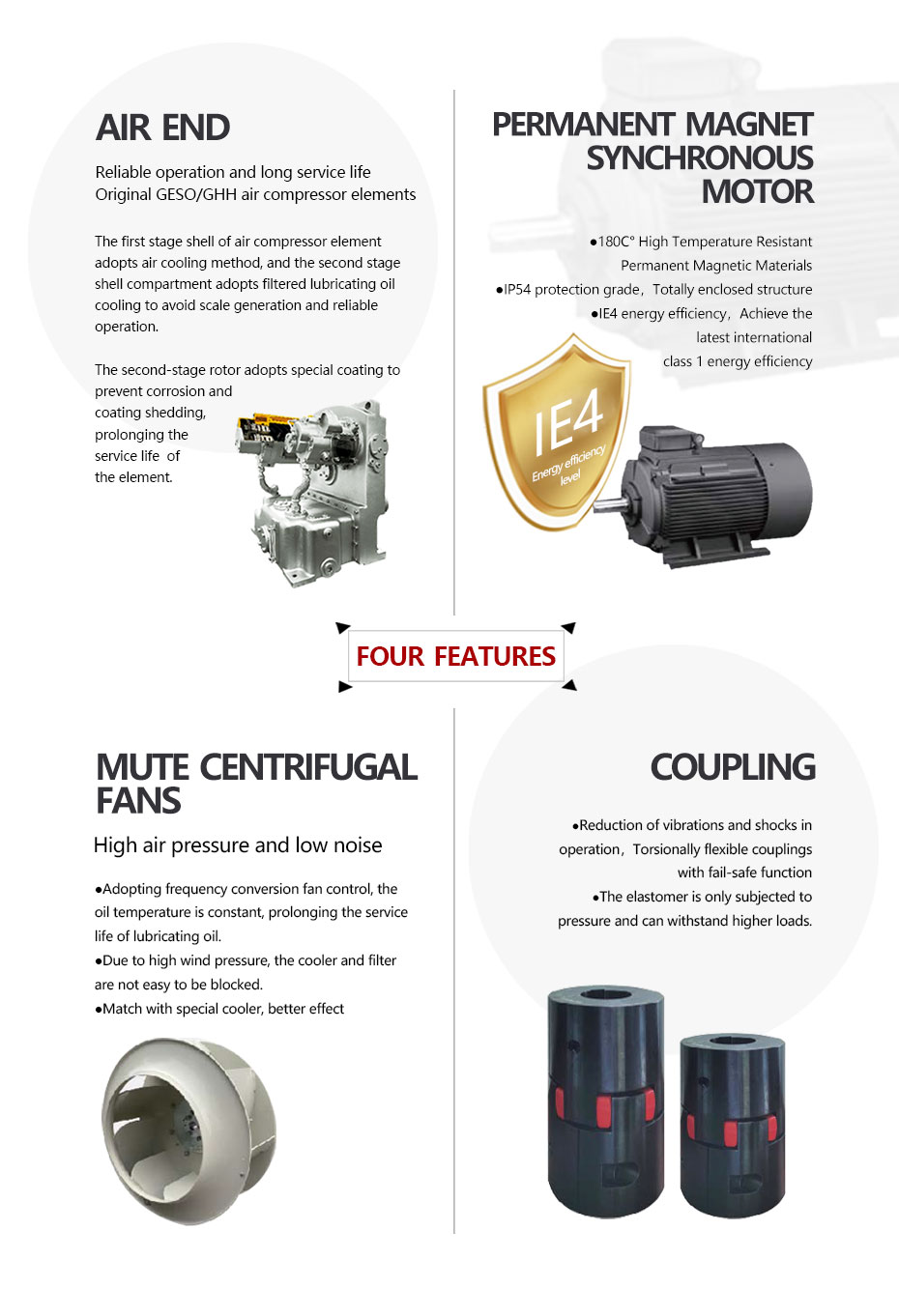

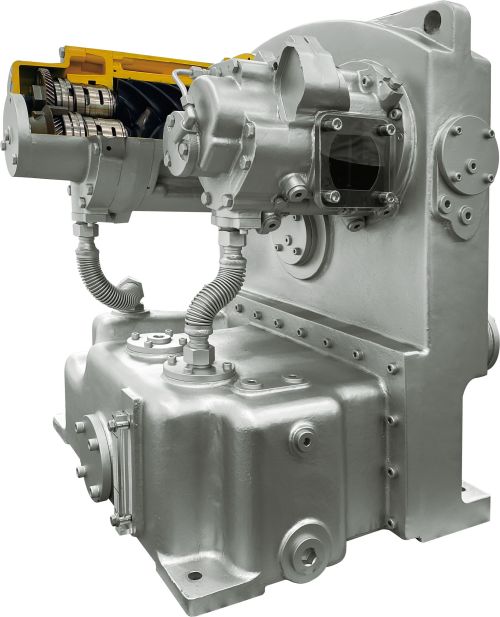

Dry Two-stage Air EndOriginal GESO/GHH air end, the first stage of the Air End casing adopts air cooling method, the second stage casing compartment adopts filtered lubricating oil cooling, avoiding the generation of scale and reliable operation. The secondary rotor is specially coated for corrosion resistance. The rotor and the inner wall of the compression chamber are coated with a sturdy coating to prevent corrosion and coating peeling off and to extend the service life of the main unit. |
|

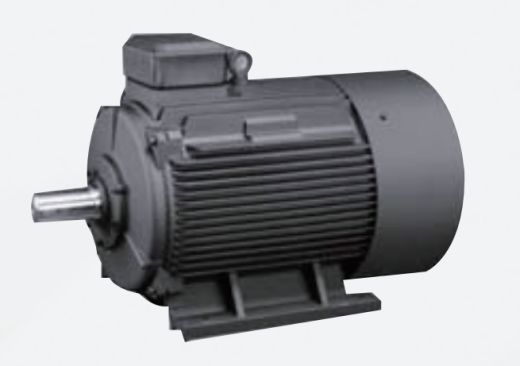

| Permanent magnet synchronous motorAdoption of 180ºC high temperature resistant permanent magnet material effectively ensures the effective operation of the permanent magnet unit. Protection class IP54 fully enclosed structure. IE4 energy efficiency reaches the latest international class I energy efficiency |
Energy Saving With Dual InverterThe motor and fan are controlled by frequency conversion regulation, thus making the oil temperature of the air end constant and the running speed lower, and enhancing the service life of the mainframe. Customized high-performance vector control frequency converter of Huichuan/ABB brand is used,the constant tempera ture of the unit is set at about 82°C, and the constant pressure accuracy is controlled at 0.01 MPA. Customized frequency conversion speed control can be started at zero speed and adiusted uniformly according to the user's needs. Linear acceleration, S-acceleration or automatic acceleration can be selected. |
|

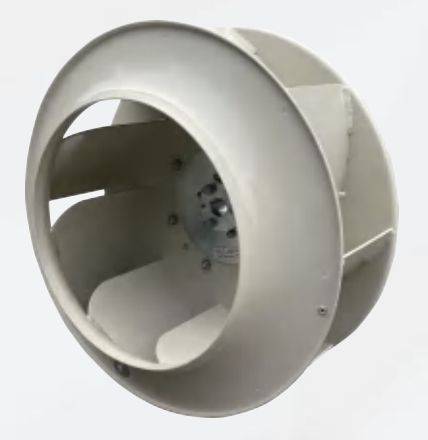

 | Silent Centrifugal FansAdopting centrifugal fan, new design of separated radial cooling fan, high air pressure, low noise, with special cooler, better effect. Adopting frequency conversion fan control, the oil temperature is constant and unchanged, prolonging the service life of lubricating oil. Due to high wind pressure, coolers and filters are not easily blocked. |

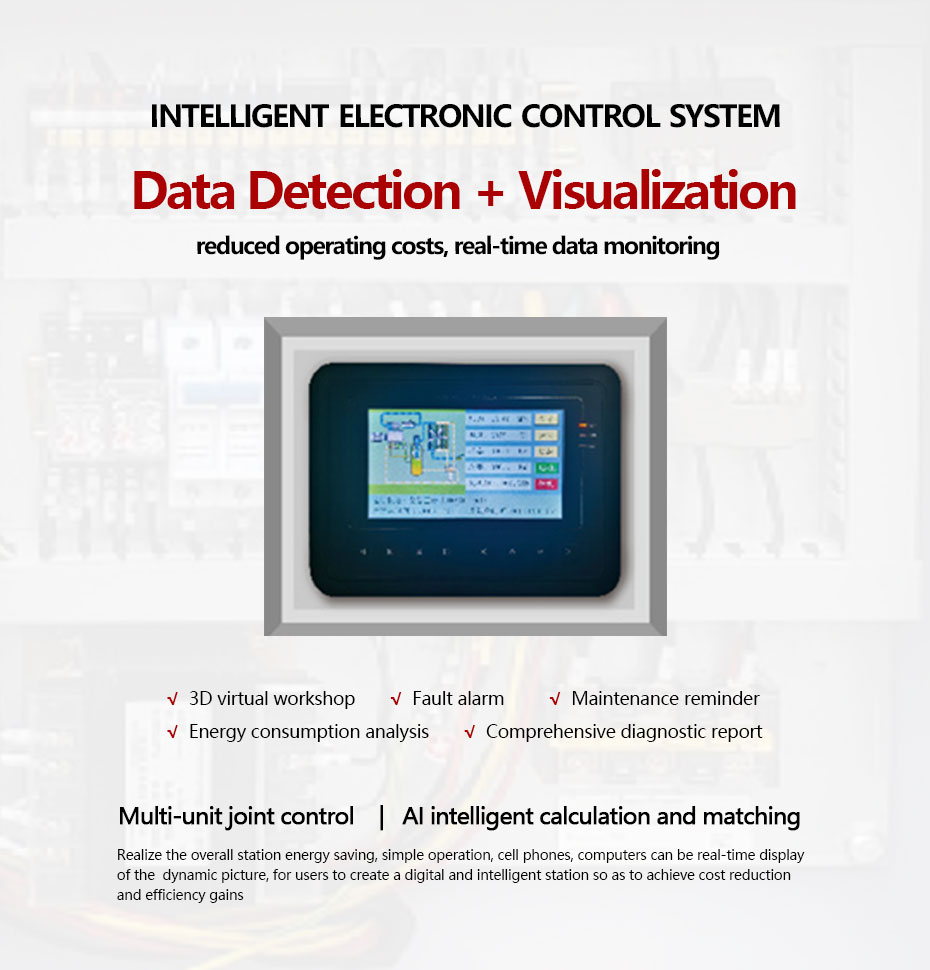

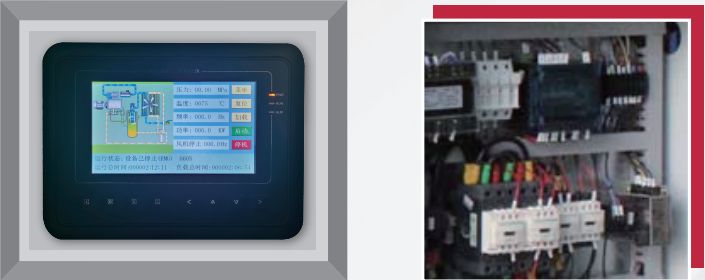

Intelligent Electronic Control SystemIntelligent control system with good human- machine communication inter face. Comprehensive detection of the operating status of the unit by multi-channel pressure sensors and multi-channel temperature sensors, intelligent program control of machine operation. Configuration of the Internet of Things, cell phone can be real-time view of the operating status of the unit, without the need for a person on-site supervision.Cell phones and computers can display dynamic images, easy to perate, and create a digital, intelli gent alr compressor station for users. Hot Tags: Dry Oil-Free VSD Compressor, China, Manufacturer, Supplier, Factory, Customized, Quality |
|
